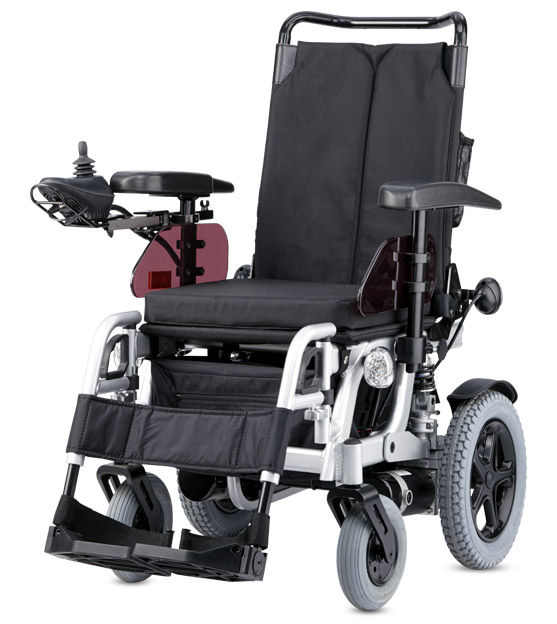

Eltego
The Standard Model
The compact Eltego is agile and well maneuverable indoors. It shows all a Electric wheelchair needs: solid drive comfort with a range of 25km, PU-tyres, suspension of the rear wheels and anti-tippers. Additionally it has further possibilities of adjustment: backrest with adjustable Velcro-strap-system, adjustable seat widths, recline function of the backrest, side parts and legrests adjustable, foot plates and control unit.
Total weight
74,5 kg
Total width
600 mm
Total length
1050 mm
Total height
1040 mm
User weight
120 kg
EQUIPMENT
TIRES
Front wheel 8″
Rear wheel 12,5″
Puncture-proof tires

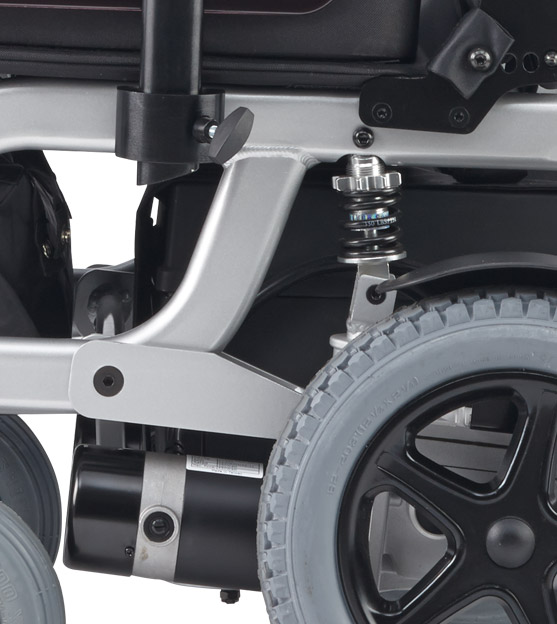

Rear wheel single suspension
Mudguards at rear wheels
Rear wheel drive
SEAT UNIT
Aluminum frame
Backrest strap system
Seat width adjustable
Backrest angle adjustable
Side parts adjustable in height and width
Legrest to swing in and out
Footplates adjustable in angel
Heel straps
Seat cushion (50 mm)
Safety belt
OTHERS

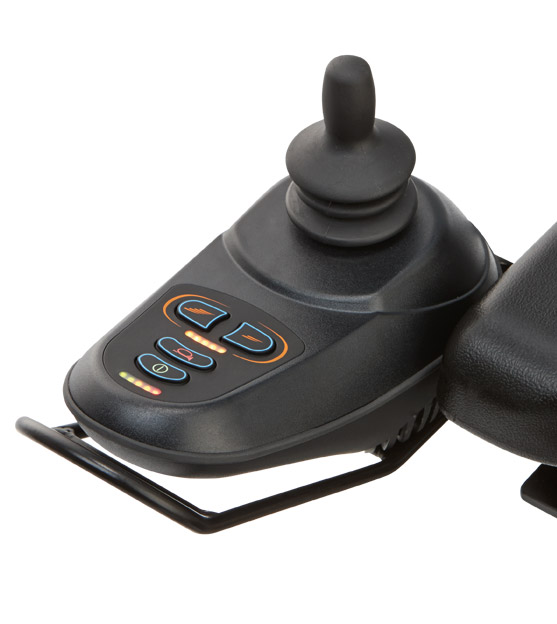

Control unit PG Drive VSI swivel, height,
and length adjustable(mounted right)Control unit can be mounted on either side
Lighting according to the traffic road regulations
Anti tippers

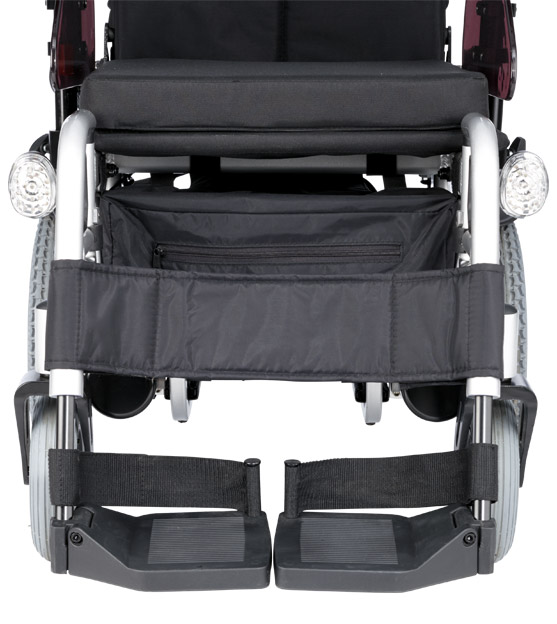

removable bag under the seat
Tool kit
SPEED
6 km/h
RANGE
aprox. 25 km
MOTOR
2 x 24 V | 250 W
SLOPE
8° | 14 %
TECHNICAL DATA
| ELTEGO |
|
|---|---|
| Seat width | 400 – 540 mm |
| Seat depth | 440 mm |
| Seat height (without cushion) | 485 mm |
| Backrest height (without cushion) | 540 mm |
| Seat angle | 3° |
| Backrest angle | 90° to 120° (manual) |
| Total width | 600 mm |
| Total height | 1040 mm |
| total length | 1050 mm |
| Lower leg length | 440 mm |
| Total weight | 74,5 kg |
| User weight | 120 kg |
| Speed | 6 km/h |
| Range | aprox. 25 km |
| Slope | 8° | 14 % |
| Reversing width | 2400 mm |
| Obstacle height | 50 mm |
| Motor | 2 x 24 V | 250 W | 4600 UPM |
| Batteries | 2 x 12 V | 56 Ah |
| Charger | 24 V | 5 Ah |
| Front wheels | 8″ (PU) |
| Rear wheels | 12,5″ (PU) |
| Frame color | Silver |
OPTIONAL ACCESSORIES
Pneumatic tires
Headrest
Stick holder
