Pyro Start Plus

The  Allrounder

The Pyro Start Plus is a versatile, lightweight wheelchair from Bischoff & Bischoff that’s ideal as an all-around solution for everyday use. It weighs as little as 14.2 kg, making it the lightest model in the Pyro series. Despite this, it can support users weighing up to 125 kg. It’s suitable for users who propel themselves, as well as for use with an attendant.

Seat height, seat depth, seat angle, and backrest height can be individually adjusted. Redesigned side panels and angle-adjustable footrests allow for even more precise customization to the user.

Customizable for Greater Seating Comfort

The Pyro Start Plus is available in seat widths ranging from 370 to 520 mm. The seat depth can be adjusted between 400 and 440 mm. The seat height ranges from 450 to 500 mm at the front and from 415 to 475 mm at the rear.

The seat angle is adjustable between 0 and 4.5°, and the backrest height between 420 and 440 mm. The backrest system with lumbar support promotes an upright yet relaxed sitting posture. The seat and backrest covers are made of durable nylon.

Well-Designed Features for Everyday Use

The swiveling Duo side panels can be used in either the desk or extended version. This allows you to get close to tables while still maintaining a secure grip when repositioning. The leg supports swivel inward and outward and can be removed, making transfers easier. The footplates are angle-adjustable and can be folded up; heel straps provide additional support for the feet.

The 24-inch drive wheels with quick-release axles and the 8-inch steering wheels are equipped with puncture-proof tires. Thanks to the angle-adjustable caster bushing, the steering wheels remain properly aligned even when the seat angle is adjusted. Knee-lever brakes, a tilt assist, and passive lighting ensure safety.

Flexibility and Customization Options

With the wheelbase extension and the adapter block, the wheelchair can be adapted to meet a variety of needs. In addition, there is a wide range of accessories available. These include a drum brake, one-hand brake, and one-hand drive, a custom backrest, a pelvic belt, anti-tip casters, and a headrest. For added comfort when leaning, there is a height-adjustable side panel, also available with a combination armrest.

Horizontally adjustable leg rests, amputation leg rests, and a therapy table expand the range of applications for special care situations.

Easy to handle, compact for transport

The side frames, cross brace, side tubes, and leg support tubes are made of aluminum. This makes the Pyro Start Plus particularly lightweight without compromising stability. When folded, it’s only 295 mm wide and fits easily in the trunk.

Thanks to quick-release axles, the drive wheels can be removed quickly, making loading even easier. The frame is available in gray or blue.

The lightweight choice in the Pyro series

The Pyro Start (starting at 16.5 kg) has a steel side frame. The Pyro Start Plus is about 2 kg lighter and offers more adjustment options. Compared to the Pyro Light (starting at 16.2 kg), it stands out with redesigned side panels and footplates. Those looking for an even lighter option will find the Vida, starting at 10.2 kg, an alternative for users weighing up to 100 kg. For taller users, the Pyro Start Plus SL is available in a special length.

This product is RehaWash-compatible and therefore suitable for use with the RehaWash system.

Total weight

14,2 kg

Total width

SW + 200 mm

Total length

1050 mm

Total height

920 mm

User weight

125 kg

STANDARD EQUIPMENT

TIRES

  • Puncture-proof tires

  • Rear wheels 24″

  • Front wheels  8″

  • Quick release axle

  • Wheelbase extension

  • Adapter block

  • Angle-adjustable Castor bushing

SEAT UNIT

  • Aluminum frame

  • Aluminum cross brace, side panel tubes, leg support tube

  • Seat height adjustable

  • Seat depth adjustable

  • Seat angle adjustable

  • Backrest height adjustment

  • Backrest system with lumbar curve

  • Seat & backrest cover (Nylon)

  • Duo sideparts (desk and long), swivelable

  • Legrests can be swiveled inwards and outwards and removeable

  • Foot plates angle-adjustable and can be folded up

  • Heel straps

OTHERS

  • push handles

  • Knee lever brake

  • Tipping aid

  • passive lighting

DOWNLOADS

Order forms, Instruction manuals & Brochures

Instruction manual
Order forms
Brochures

TECHNICAL DATA

PYRO START PLUS
Seat width 370 – 520 mm
Seat depth 400 – 440 mm
Seat height front* 450 – 500 mm
Seat height rear* 415 – 475 mm
Backrest height* 420 – 440 mm
Backrest angle 98°
Seat angle 0° – 4,5°
Lower leg length 420 – 500 mm
Total width SW + 200 mm
Total width folded 295 mm
Total height 920 mm
Total length with legrest 1050 mm
Total length without legrest 800 mm
Total weight 14,2 kg
User weight 125 kg
Frame color Grey  | Blue
* without seat cushion

OPTIONAL EQUIPMENT

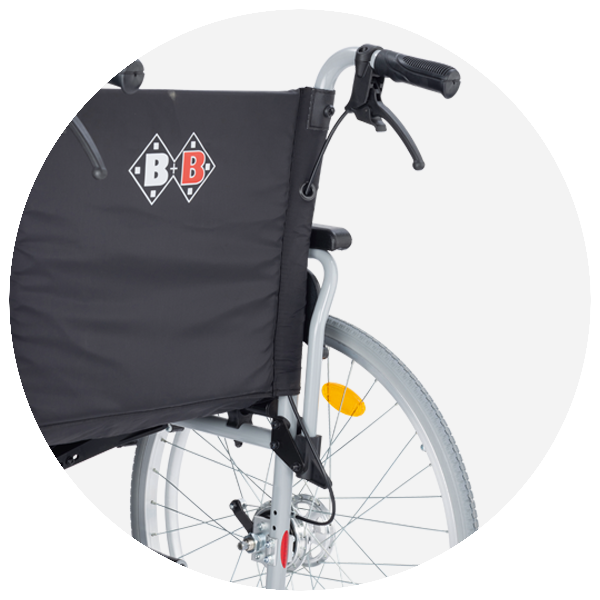

Drum brake

Single-hand brake (mechanical)

one hand drive

Backrest strap system

Safety belt

Anti tippers

Brake lever extension

Legrest extention

Sideparts adjustable in height

Sideparts with combined arm cushion adjustable in height

Legrest elevating adjustable horizontally

Amputation leg supports

Seat cushion (50 mm)

Headrest

Stick holder

Spoke protection

Therapy tray

Handrim cover

Lightweight wheelchairs in comparsion



  • Total weight: 16,8 kg

  • Total width: SW + 200 mm

  • Total length: 1100 mm

  • Total height: 860 mm

  • User weight: 125 kg

  • Total weight: 14,2 kg

  • Total width: SW + 200 mm

  • Total length: 1050 mm

  • Total height: 920 mm

  • User weight: 125 kg

  • Total weight: 16,2 kg

  • Total width: SW + 200 mm

  • Total length: 1040 mm

  • Total Height: 945 mm

  • User weight: 125 kg

  • Total weight: 16,5 kg

  • Total width: SW + 200 mm

  • Total length: 1080 mm

  • Total height: 935 mm

  • User weight: 125 kg

  • Total weight: 10,2 kg

  • Total width: 680 mm

  • Total length: 1030 mm

  • Total height: 890 mm

  • User weight: 100 kg
