S-Eco 300 XL
The flexible standard

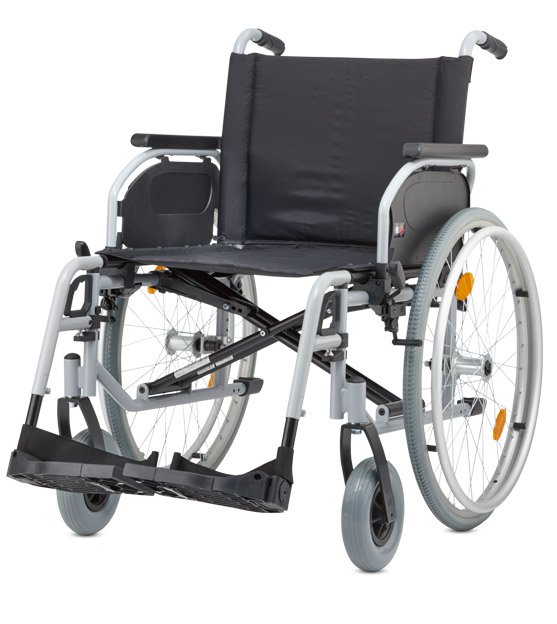

The S-Eco 300 XL is the B+B XL wheelchair in the standard range. With its ability to accommodate a weight of 170 kg and its availability in seat widths of 52 cm, 55 cm and 58 cm, this wheelchair is ideal for the larger user. As with the S-Eco 300, the seat height can be adjusted and a rear wheel extension is also possible. Furthermore, the S-Eco 300 XL is equipped with duo side panels.
Total weight
22,8 kg
Total width
SW + 190 mm
Total length
1010 mm
Total height
935 mm
User weight
170 kg
EQUIPMENT
TIRES
Puncture-proof tires
Rear wheels 24″
Front wheels 8″

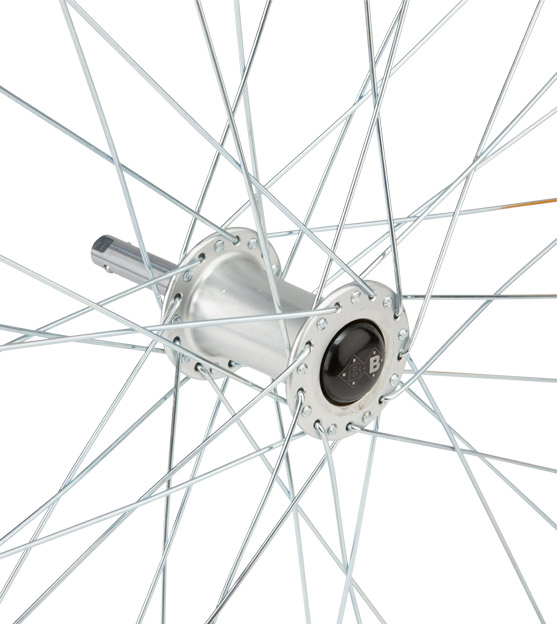

Quick release axle
Wheelbase extension
Adapter block
SEAT UNIT
Steel frame
Steel cross brace, side panel tubes,

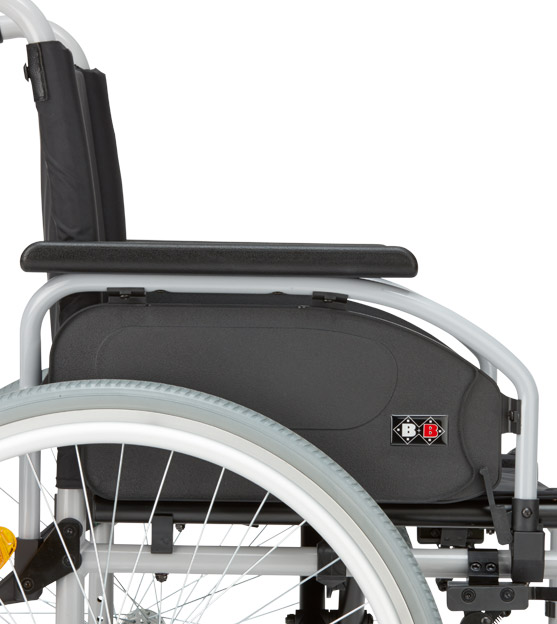

leg support tubesDuo sideparts (desk and long), swivelable
Legrests can be swiveled inwards and outwards and removeable
Foot plates adjustable in angle and width
OTHERS
push handles
Knee lever brake
Double cross brace
Heel straps
Tipping aid
passive lighting
TECHNICAL DATA
| S-ECO 300 XL |
|
|---|---|
| Seat width | 520 – 580 mm |
| Seat depth | 450 mm |
| Seat height front* | 470 – 510 mm |
| Seat height rear* | 440 – 490 mm |
| Backrest height* | 400 mm |
| Total width | SW + 190 mm |
| Total width folded | 330 mm |
| Total height | 935 mm |
| Total length with Legrest | 1010 mm |
| Total lenght without Legrest | 840 mm |
| Total weight | 22,8 kg |
| User weight | 170 kg |
| Frame colors | Silver |
| *without seat cushion | |
OPTIONAL EQUIPMENT
Drum brake
Single-hand brake (mechanical)
One hand drive
Safety belt XL
Anti tippers
Infusion- & Oxygen bottle holder
Brake lever extension
Sideparts adjustable in height
Legrest elevating adjustable horizontally
Amputation leg supports
Seat cushion
Headrest
Stick holder
Spoke protection
Therapy tray
Handrim cover
Footplate
Push handles adjustable in height
XL | XXL products in comparison
Total weight: 22,8 kg
Total width: SW + 190 mm
Total length: 1010 mm
Total height: 935 mm
User weight: 170 kg
Total weight: 18,6 kg
Total width: SW + 190 mm
Total length: 1050 mm
Total height: 940 mm
User weight: 170 kg
Total weight: 21,6 kg
Total width: SW + 230 mm
Total length: 1080 mm
Total height: 850 – 950 mm
User weight: 170 kg
Total weight: 35,2 kg
Total width: SW + 220 mm
Total length: 1100 mm
Total heigth: 990 – 1060 mm
User weight: 250 kg
