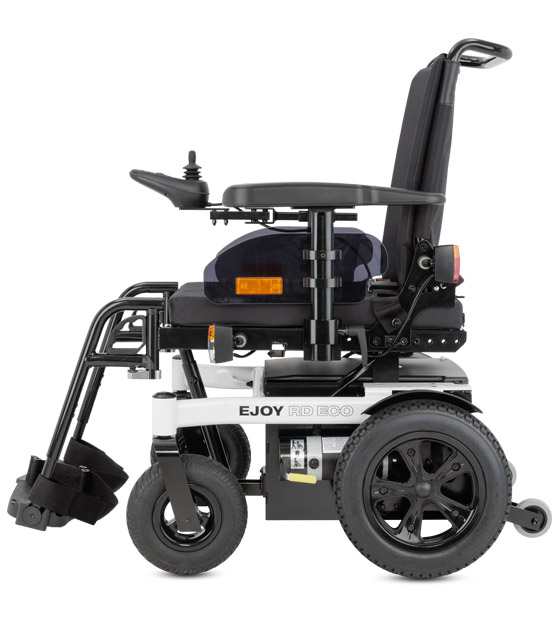

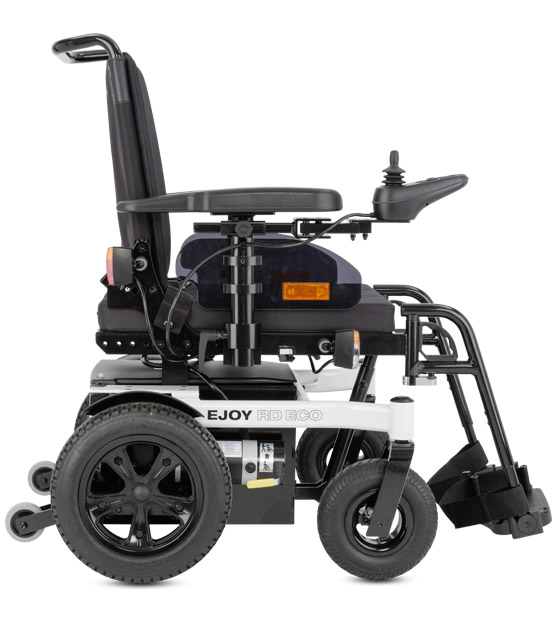

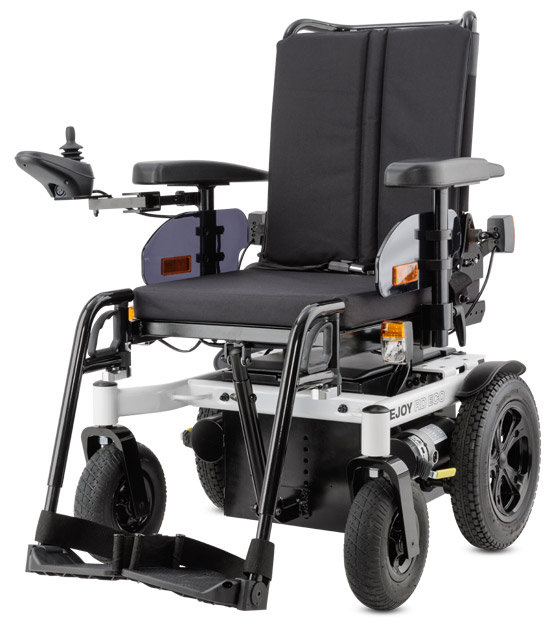

Ejoy RD Eco
Rear wheel drive electric wheelchair
elevators. You can effortlessly navigate turns in narrow hallways with the EJOY RD Eco electric wheelchair.
With a range of approximately 25 kilometers, the EJOY RD Eco can handle longer distances at speeds of up to 6 km/h. The EJOY RD Eco reliably navigates inclines of up to 6° and obstacles up to 50 mm high. The electric wheelchair’s maximum weight capacity is 140 kg.
With the rear-wheel-drive EJOY RD Eco, you’ll achieve maximum agility and mobility in everyday life and can participate more actively in life. The powerful performance of this electric wheelchair makes it the perfect partner for your adventures.
The High-Performance Electric Wheelchair for Indoor & Outdoor Use

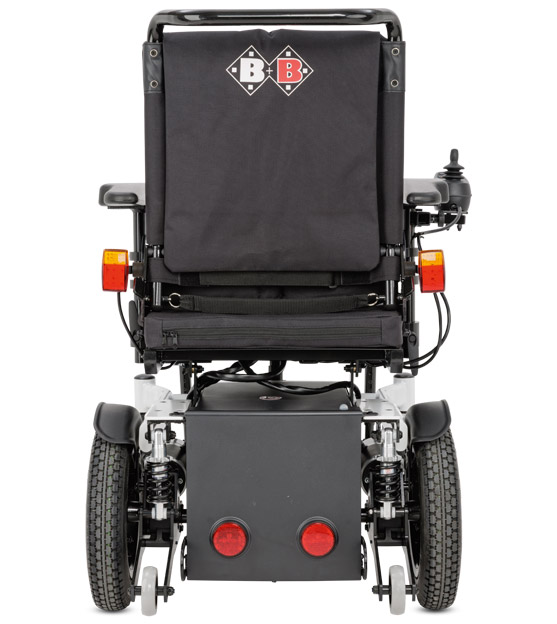

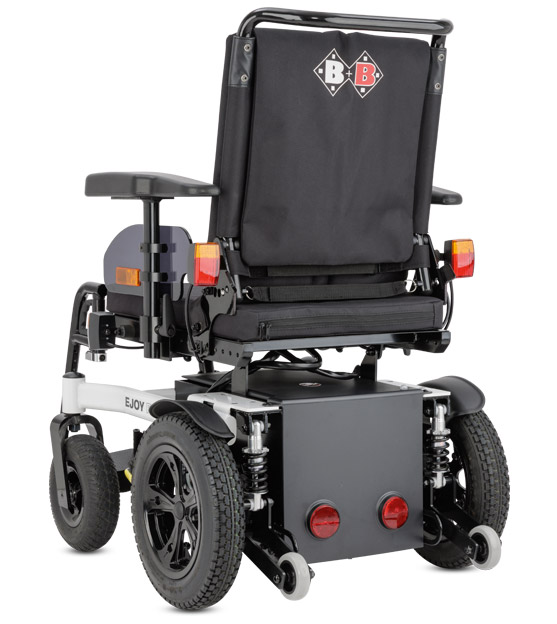

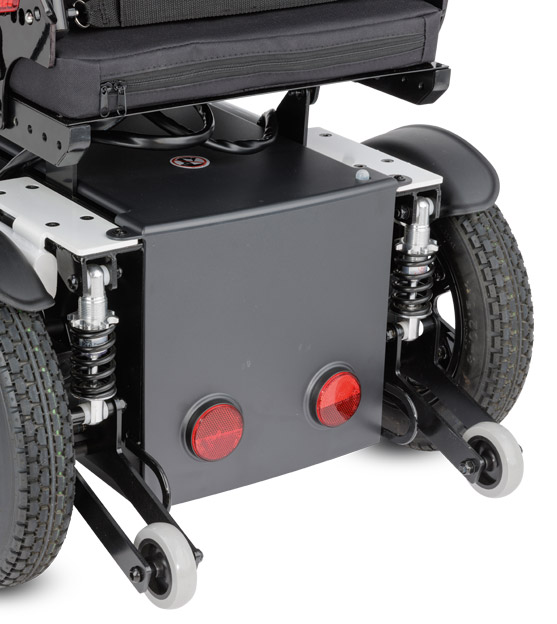

The EJOY RD Eco electric wheelchair, featuring rear-wheel drive, drive wheels with independent suspension, and a spring-loaded chassis, offers a high degree of stability and traction. This electric wheelchair has a turning radius of 1200 mm.
Because the electric wheelchair swivels outward in the front, visible area, it is also very well suited for people with cognitive impairments or older adults. The pivot point is located behind the user. The center of gravity lies between the drive axle and the steering wheels. As a result, the center of gravity shifts only slightly when traveling uphill or downhill. When traveling uphill, the center of gravity shifts toward the drive axle, which improves traction.

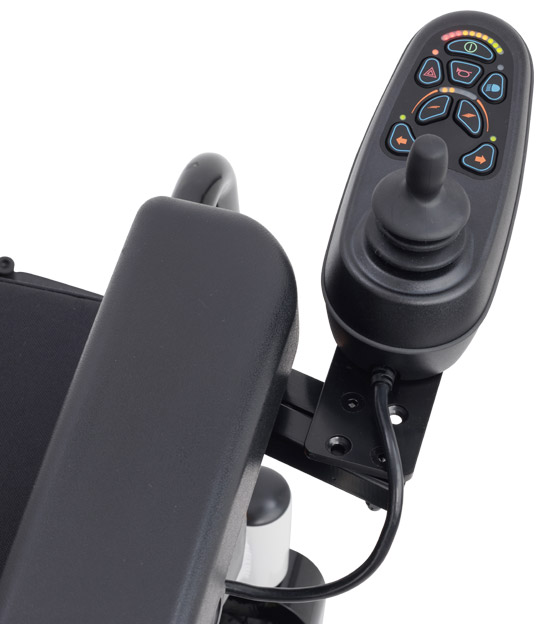

The easy-to-use PG Drive VR-2 control panel is mounted on the right side of the EJOY RD Eco electric wheelchair as standard. It is length-adjustable and swivels.
Maximum Seating Comfort & Safety

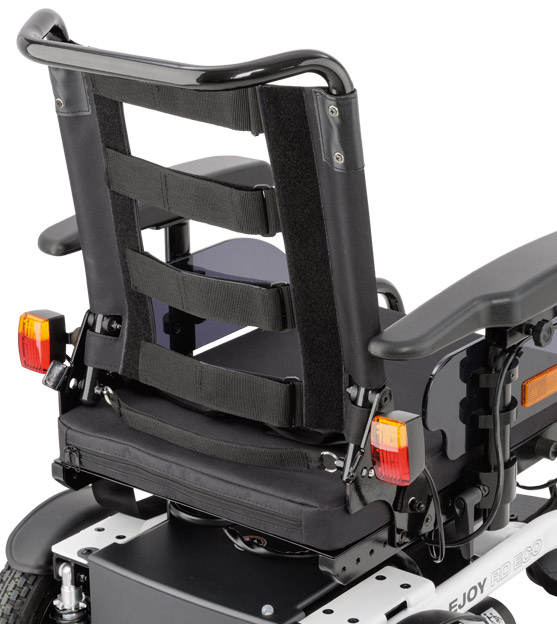

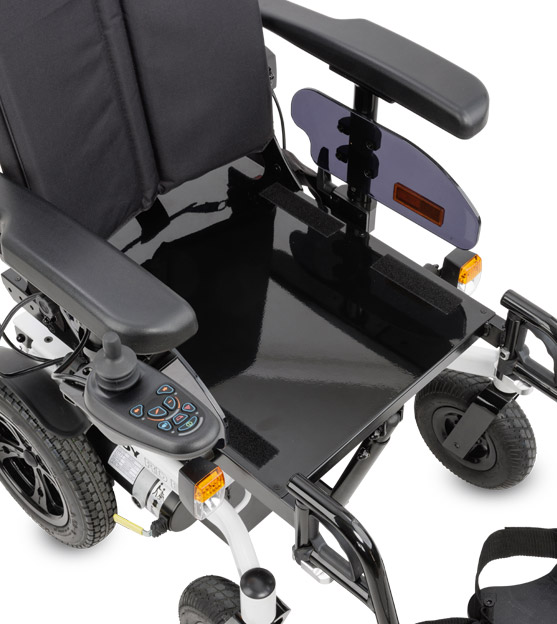

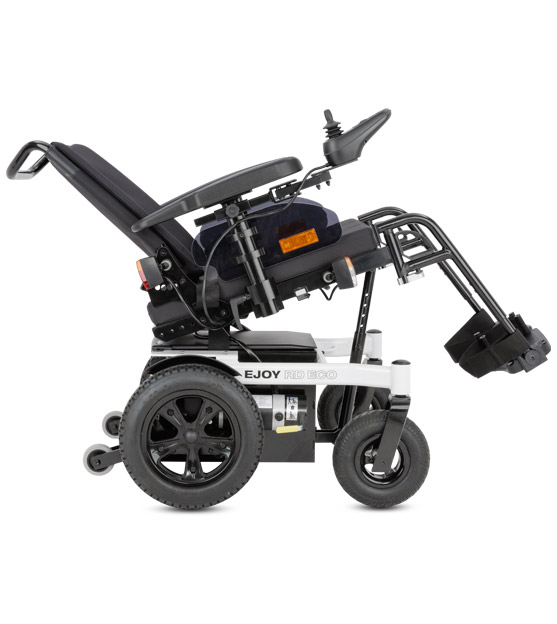

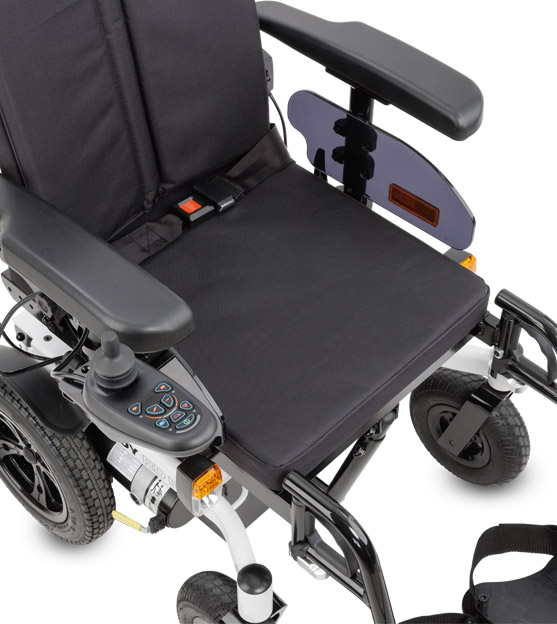

The sturdy steel frame of the EJOY RD Eco is your reliable companion for everyday life. The solid seat plate ensures safety and stability. You can individually adjust the seat and backrest angles, and with the two frame sizes — 420 mm and 470 mm — you have the option to adjust the seat width by an additional 5 cm.

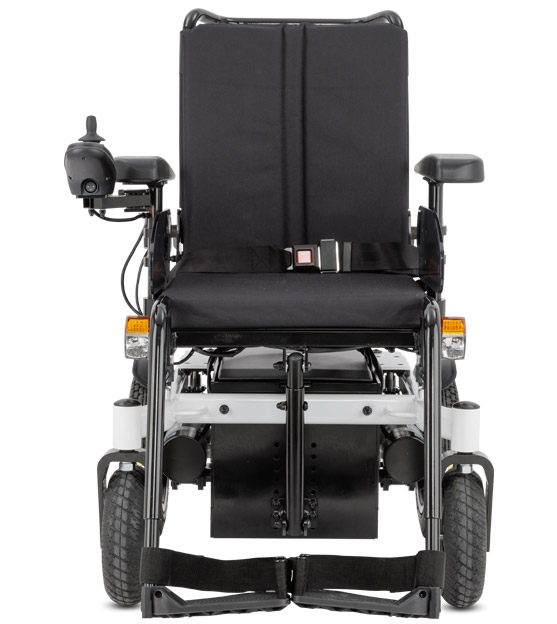

The leg rests can be swiveled away for easy entry and exit. The footplates are angle-adjustable to ensure stable leg support. A comfortable seat cushion guarantees maximum comfort even on longer trips in the electric wheelchair. A lap belt, as well as calf and heel straps, provide the necessary stability.
A splash guard on both sides of the electric wheelchair protects the user on wet roads. The lighting on the rear-wheel-drive EJOY RD Eco complies with the StVZO.
Smart Design & Extensive Range of Accessories
The EJOY RD Eco rear-wheel-drive electric wheelchair features an appealing, modern design that’s sure to impress. The white finish gives the steel frame a sense of lightness. All other parts of the electric wheelchair are finished in a simple black.
For the EJOY RD Eco electric wheelchair, we offer an extensive range of configurations and additional accessories.
total weight
104 kg
total width
620 – 830 mm
total length
1070 mm
total height
960 – 1090 mm
user weight
140 kg
EQUIPMENT
TIRES
Rear wheel 14″ (PU)
Front wheel 9″ (PU)
Rear wheel single suspension
Mudguards rear
Rear wheel drive
SEAT UNIT
Steel frame
Backrest strap system
Seat plate
Seat height adjustable
Backrest angle adjustable
Seat angle adjustable
Side parts adjustable in height and width
Legrest to swing in and out
Footplates adjustable in angle and width
Seat cushion (50 mm)
Safety belt
OTHERS
Control unit PG Drive VR-2 JSM-L with light (mounted right)
Control unit PG Drive to swing away and adjustable in length
Control panel can be mounted on both sides
Footplates with heel strap
Anti tippers
Lighting according to the traffic road regulations
SPEED
6 km/h
RANGE
approx. 25 km
MOTOR
2 x 24 V | 350 W
SLOPE
6° | 10 %
TECHNICAL DATA
| Ejoy RD Eco | |
|---|---|
| Seat width | 420 | 470 mm |
| Seat width (effective) | 470 | 520 mm |
| Seat depth | 400 – 550 mm |
| Seat height* | 430 – 530 mm |
| Backrest height* | 500 mm |
| Seat angle | 0° – 20° (manually) |
| Backrest angle | 90° – 120° (manually) |
| Speed | 6 km/h |
| Range | approx. 25 km |
| Slope | 6° | 10 % |
| Obstacle height | 50 mm |
| Ground clearance | 65 mm |
| Reversing width | 1200 mm |
| Front wheels | 9″ (PU) |
| Rear wheels | 14″ (PU) |
| Total width | 620 – 830 mm |
| Total length with Legrest | 1070 mm |
| Total length without Legrest | 880 mm |
| Lower leg length | 370 – 540 mm |
| Total height (without headrest) | 960 – 1090 mm |
| Total weight | approx. 104 kg |
| User weight | 140 kg |
| Battery | 2 x 12 V | 40 Ah |
| Motor | 6 km/h (2 x 24 V | 350 W) 3000 UPM |
| Charger | 24 V | 5 A |
| Frame color | White |
| * without seat cushion |
ACCESSORIES
Control unit PG Drive VR-2 Controller for attendant person
Calf strap

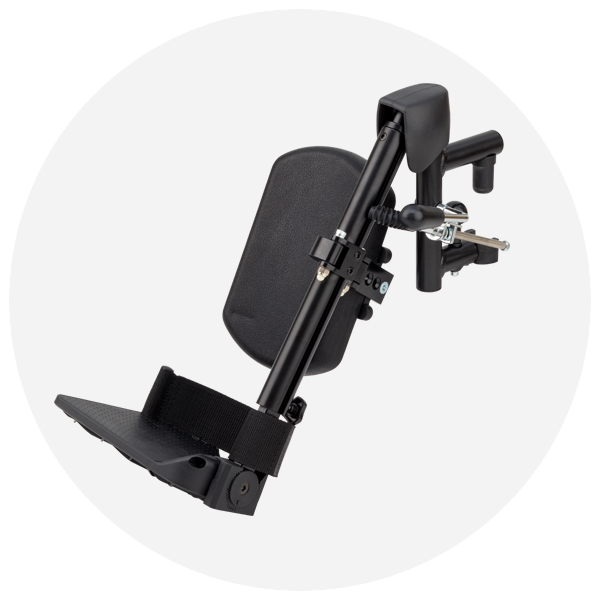

Legrest elevating adjustable horizontally
Amputee support
Footboard (continuous)
Stick holder
Rear morror
