Pyro Start Plus SL

The Lightweight

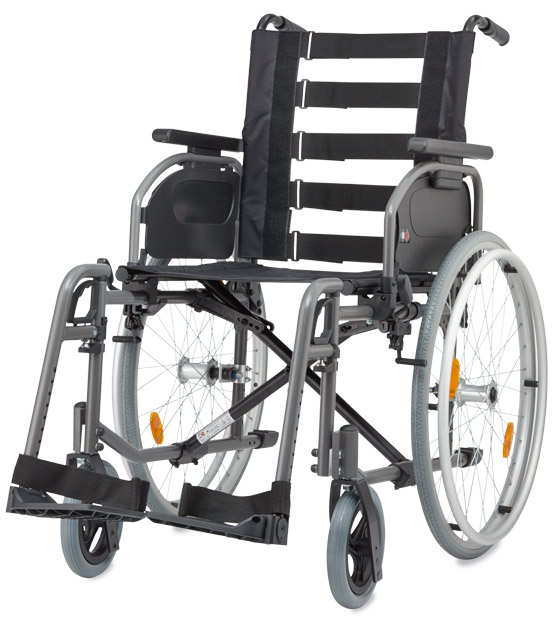

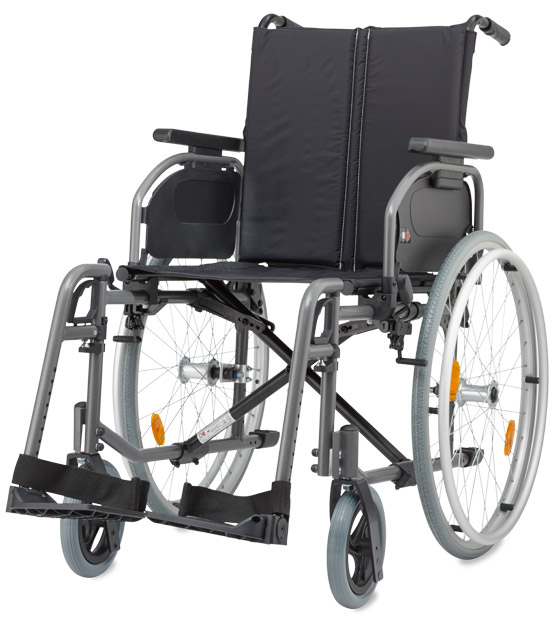

The Pyro Start Plus SL is the B+B lightweight wheelchair for tall people. Its dimensions match the Pyro Start Plus seamlessly, so that coverage is ensured up to a height of 2.10 m. The seat height (52.5 – 60 cm), seat depth (46 – 52 cm) and backrest height (46 – 50 cm) can all be adjusted, meaning the Pyro Start Plus SL provides maximum flexibility. All the usual Pyro Start Plus features can also be found here. For the comfort of the accompanying person, this lightweight wheelchair can also be equipped with an optional depth-adjustable push handle.

Total weight

15,8 kg

Total width

SW + 200 mm

Total length

1100 mm

Total height

985 mm

User weight

150 kg

EQUIPMENT



TIRES

  • Puncture-proof tires

  • Rear wheels 24″

  • Front wheels  8″

  • Quick release axle

  • Wheelbase extention

  • Adapter block

SEAT UNIT

  • Aluminum Frame

  • Seat height adjustable at front and rear

  • Seat depth adjustable

  • Backrest height adjustment

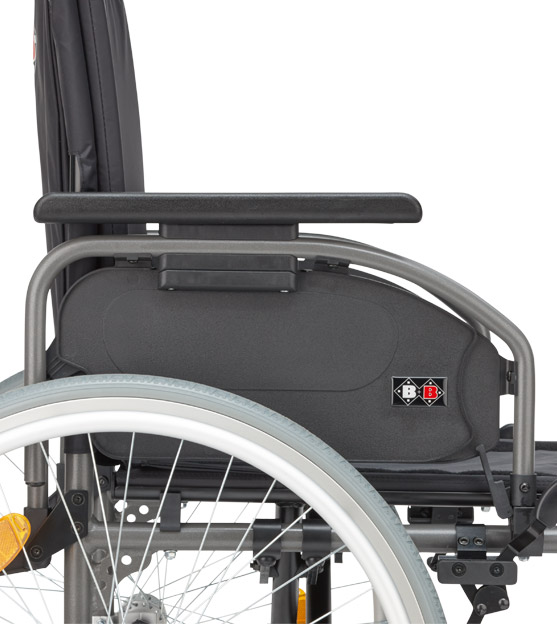

  • Duo sideparts (desk and long)

  • Backrest system with lumbar curve

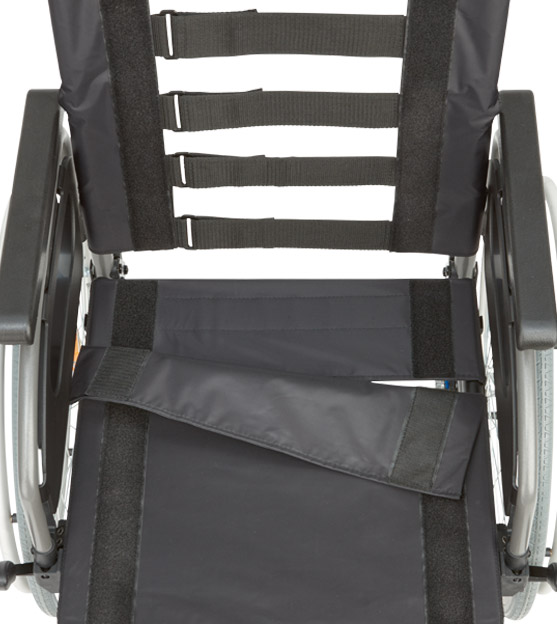

  • Backrest strap system

OTHERS

  • Knee lever brake

  • Legrests can be swiveled inwards and outwards and removeable

  • Foot plates angle-adjustable

  • Heel strap

  • Tipping aid

  • passive lighting

DOWNLOADS

Order forms, Instruction manuals & Brochures

Instruction manual
Order forms
Brochures

TECHNICAL DATA

PYRO START PLUS SL
Seat width 430 – 520 mm
Seat depth 460 – 520 mm
Seat height front 525 – 600 mm
Seat height rear 500 – 580 cm
Backrest height 400 mm
Total width SW + 200 mm
Total width folded 305 mm
Total height 1030 – 1100 mm
Total length with Legrests 1100 mm
Total length without Legrests 860 mm
Total weight 15,8 kg
User weight 150 kg
Frame color Anthracite

OPTIONAL EQUIPMENT

Drum brake

Single-hand brake (mechanical)

One hand drive

Side parts adjustable in height

Safety belt XL

Anti tippers

Infusion- & Oxygen bottle holder

Brake lever extension

Legrest extension

Legrest elevating adjustable horizontally

Amputation leg supports

Seat cushion

Headrest

Stick holder

Spoke protection

Therapy tray

Handrim cover

Transit conversion

Front wheels (PU)

SL Products in comparison



  • Total weight: 36,8 kg

  • Total width: SW + 190 mm

  • Total length: 1200 mm

  • Total height: 1035 – 1115 mm

  • User weight: 150 kg

  • Total weight: 15,8 kg

  • Total width: SW + 200 mm

  • Total length: 1100 mm

  • Total height: 1030 – 1100 mm

  • User weight: 150 kg
